Fast Gift OLED 128x64 USB Tester DC voltmeter current voltage Meters Power Bank battery Capacity monitor qc3.0 Phone charger detector

Fast Gift OLED 128x64 USB Tester DC voltmeter current voltage Meters Power Bank battery Capacity monitor qc3.0 Phone charger detector Rating: 4.9 out of 5

Power Bank Charger Sale Collections provide powerful case,universal power bank,portable charger Fast Gift OLED 128x64 USB Tester DC voltmeter current voltage Meters Power Bank battery Capacity monitor qc3.0 Phone charger detector. Get Discount Now! Only US $15.92/piece at this time. Hurry buy Now before back to normal price! Normal price US $19.90 or you can Check price now. Dont waste your time. Buy Now only in HIDANCE Official Store Trusted Seller Store!
...Original manufacturers direct sales:

Using has a track record of express logistics transportation, quick and safe &conve-nient, Track the query web site:www.17track.net/en https://global.cainiao.com

Of course, the price will be a slightly higher, but you can get a five-star service! Shopping is more safe and more comfortable!

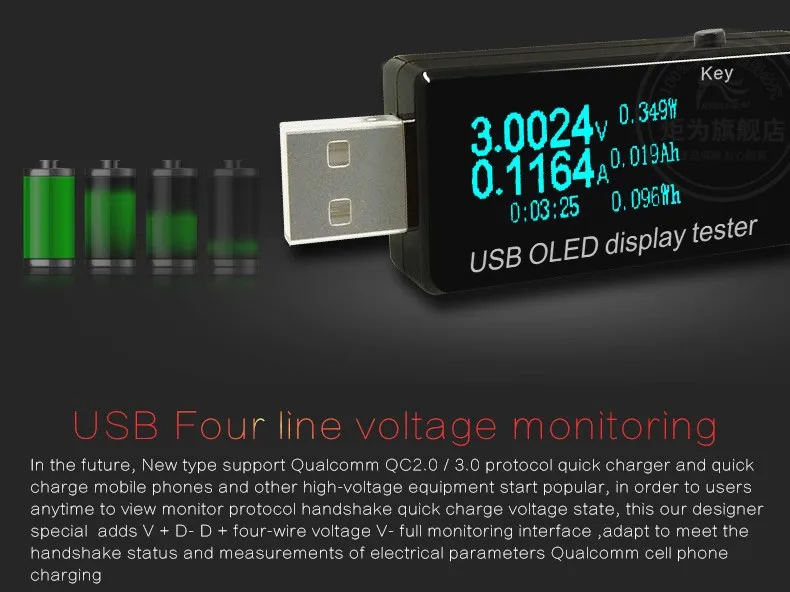

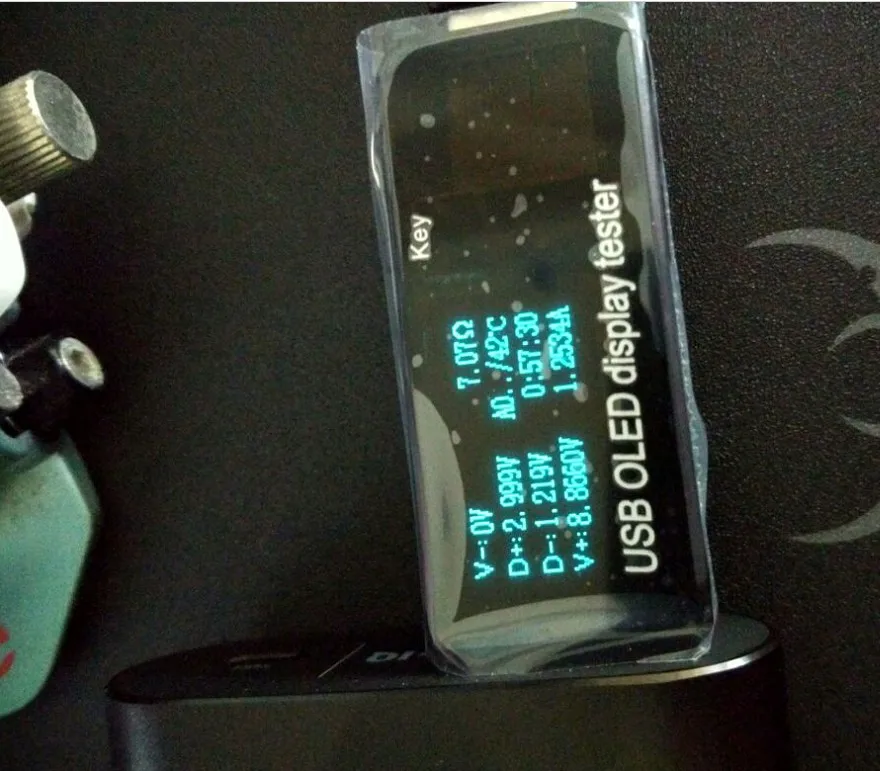

Good thing: Limited time free of charge:USB Load 1 PCS ( High-power multi-position ) This OLED USB tester can monitor voltage, current, capacity, electric quantity,power, load impedance, D +/ D- voltage, charging time and other data of USB, and supports Qualcomm QC3.0 compatible QC2.0, BC1.2, and Apple 2.4A and other protocol quick charging voltage ranges.

Capacity, Electrical voltage, time, power cut down memory can save data

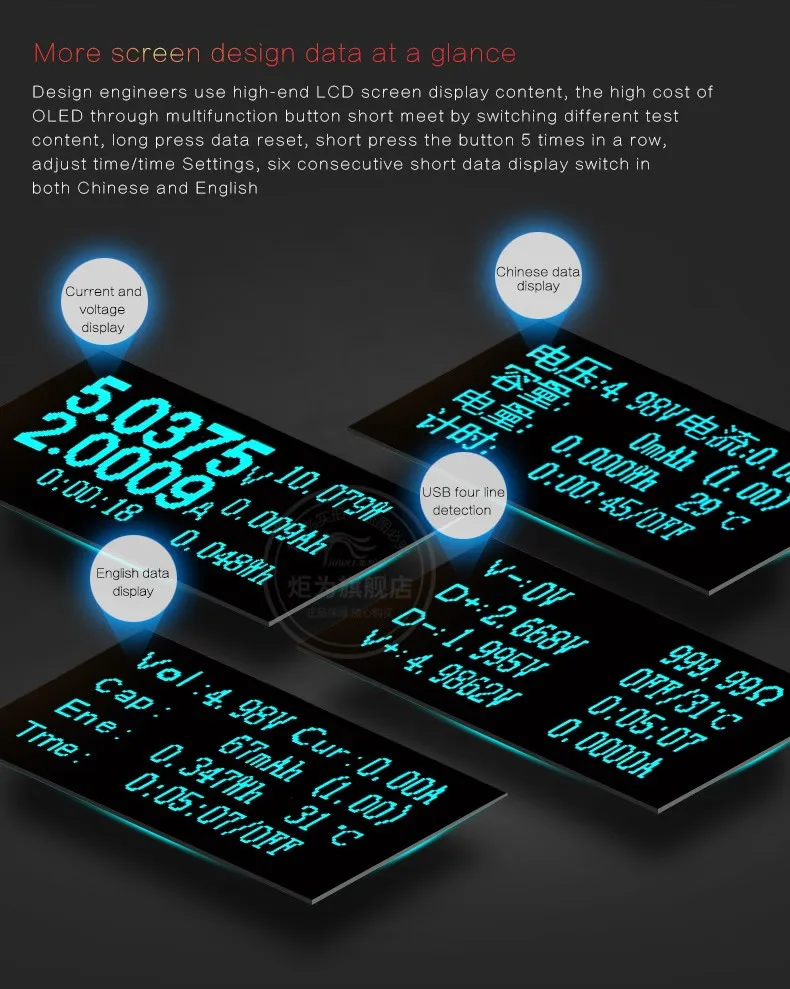

key:Function Key Description

Long press: display after-sale interface on the front page; the reset function on the interface of magnification capacity and electric quantity

Double-click: capacity zero clearing

Three-click: electric quantity zero clearing

(electric quantity and capacity with PW CUT MEMORY)

Four-click: cumulative time reset to zero

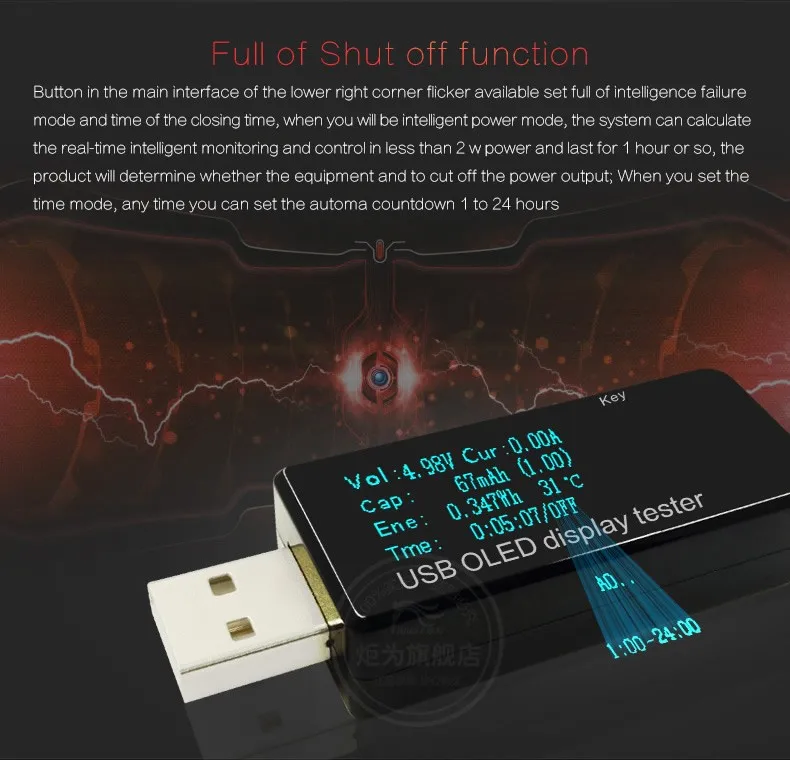

Five-click: enter into charging timing and cut-off duration settings

Original manufacturers direct sales:

Using has a track record of express logistics transportation, quick and safe &conve-nient, Track the query web site:www.17track.net/en https://global.cainiao.com

Of course, the price will be a slightly higher, but you can get a five-star service! Shopping is more safe and more comfortable!

Successful cases:

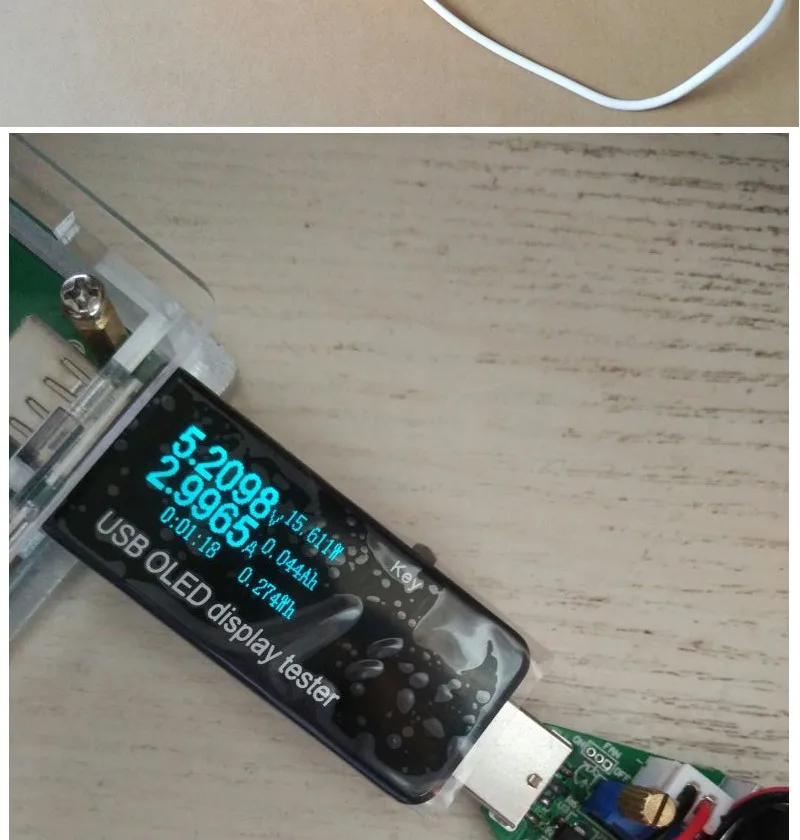

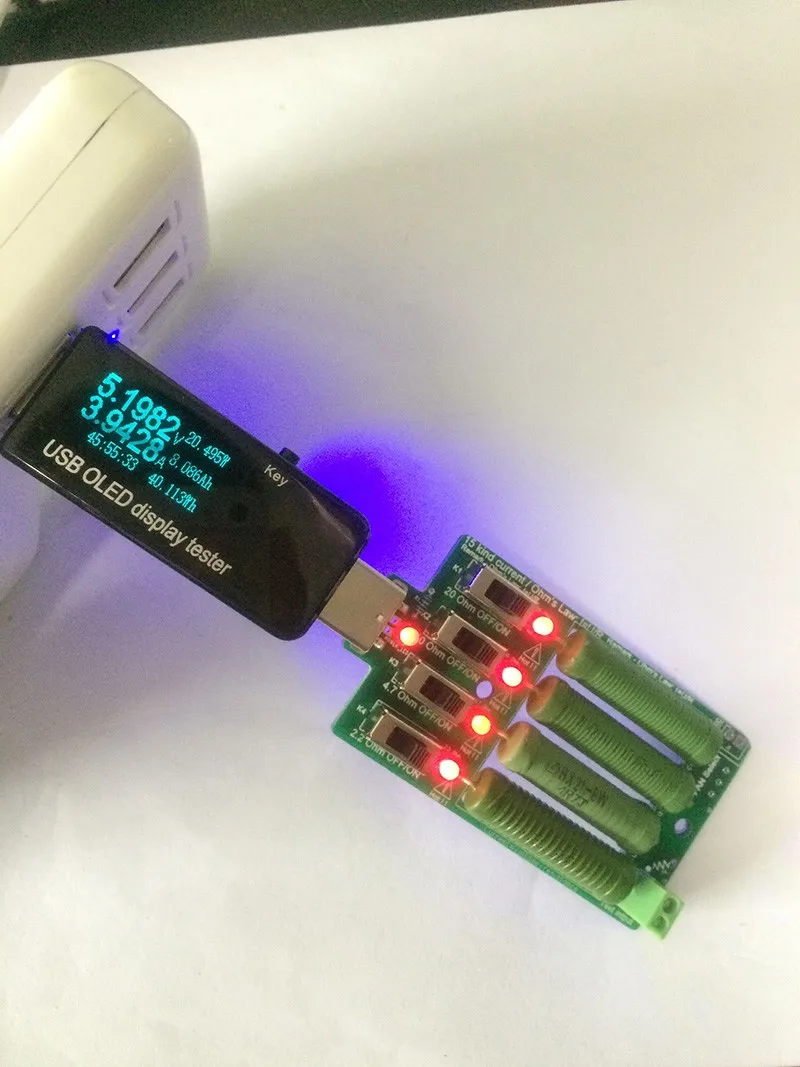

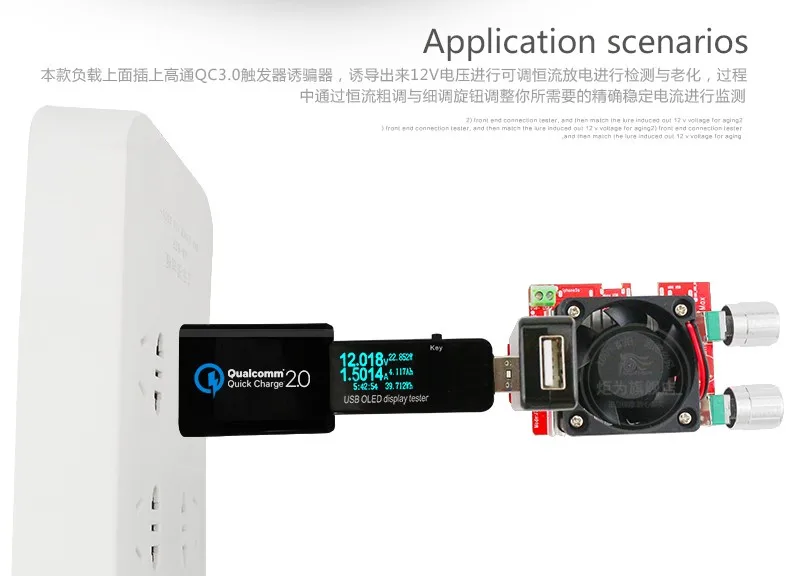

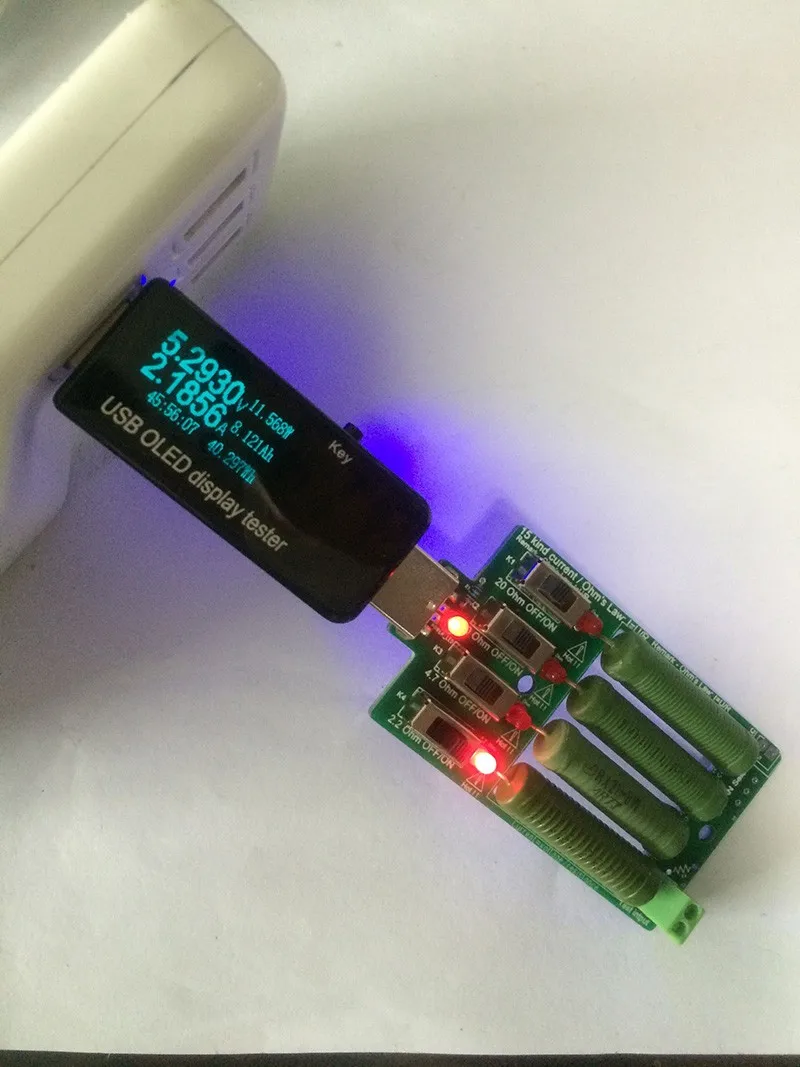

Matching adjustable electronic load resistor (current 0-3A). click here

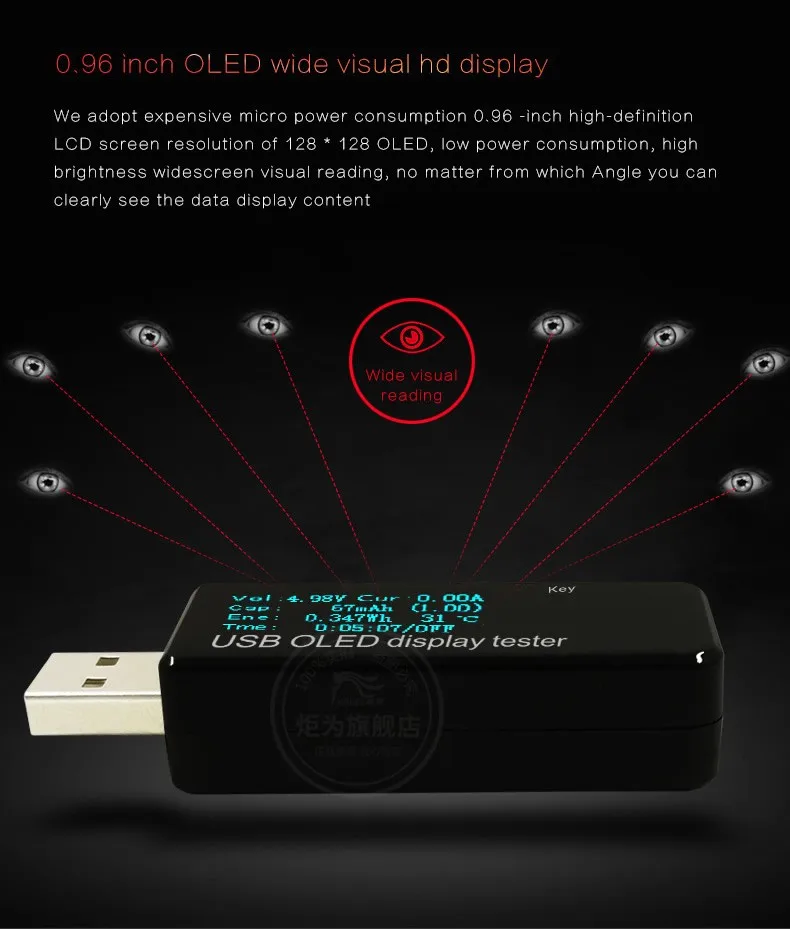

2016 Nwest Multifunction wide voltage type (3-30V) 0.96" OLED USB Security Monitor

Voltage, current, capacity, Electrical voltage, power, timing and other data, a screen display, Take-all measure!Features: 1. 100% Brand New and High Quality.
2. This is the mini USB meter. It can measure voltage, current, power and capacity.
3. It can clearly display all the data. Can easily measure the USB port and device operating current and the output voltage charge-discharge capacity, performance, and judge the performance of the charging cable charging equipment
4. This tester can meet the requirements! Fit to factories, laboratories and personal use wide range
5. Easy to use, easy to take alone, no additional power supply
6. Support QC2.0, Compatible QC3.0, BC1.2, Apple voltage range

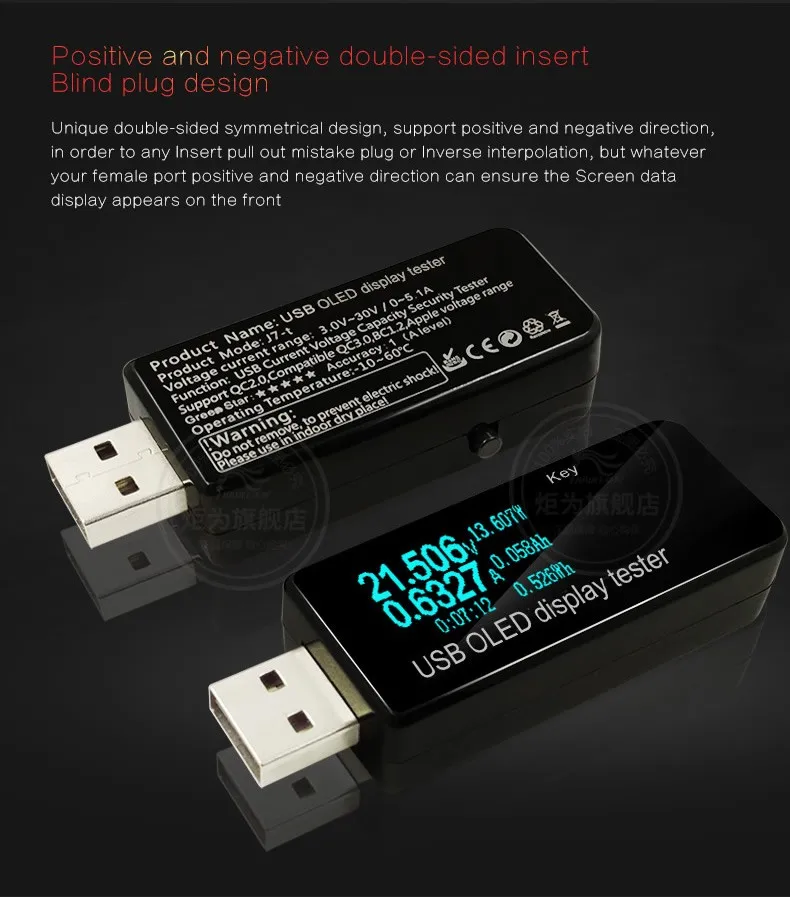

7. Support USB double-sided plug

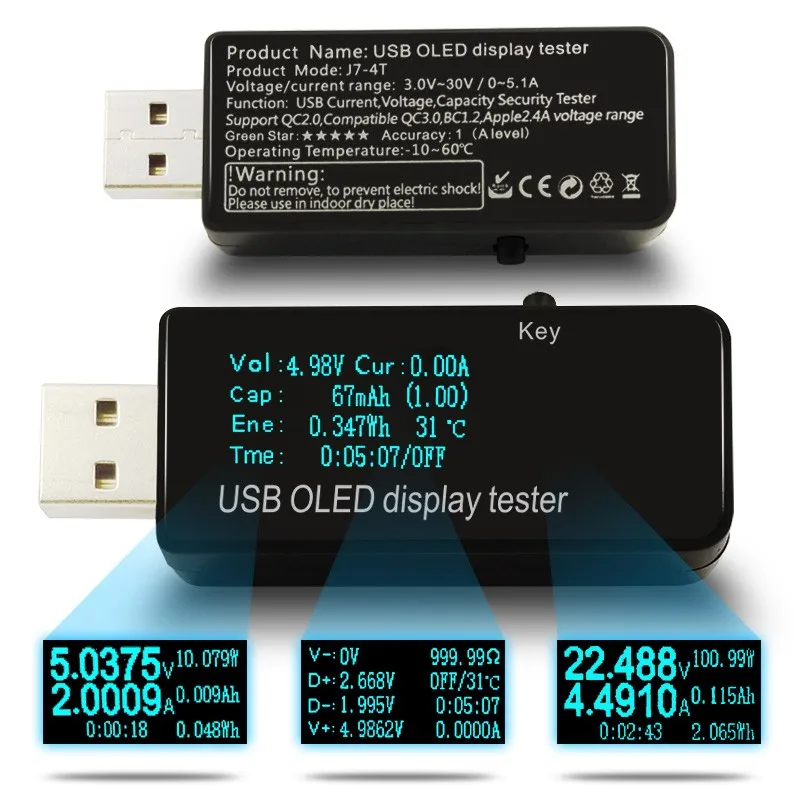

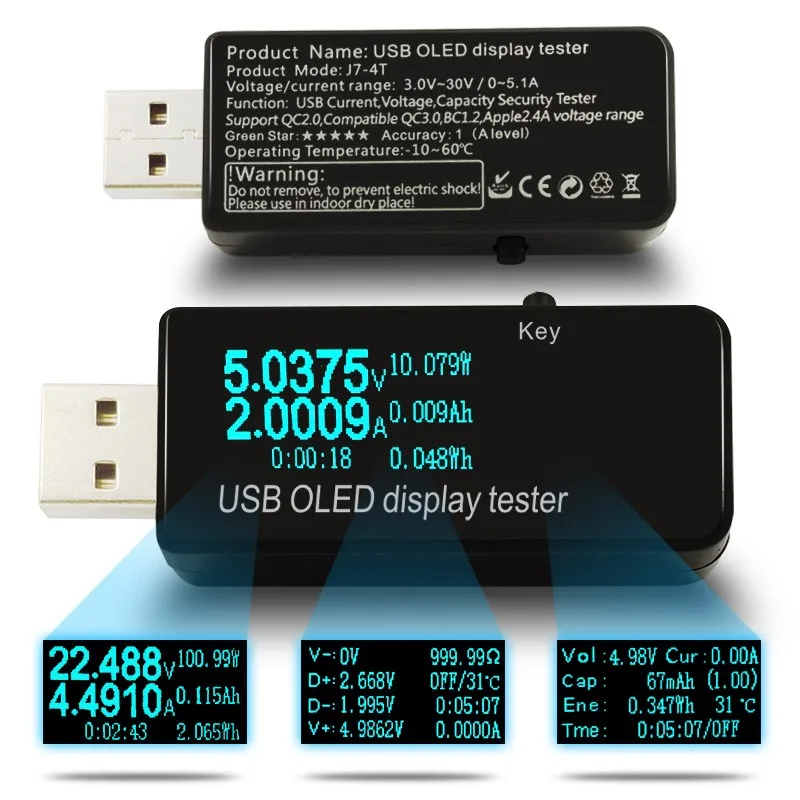

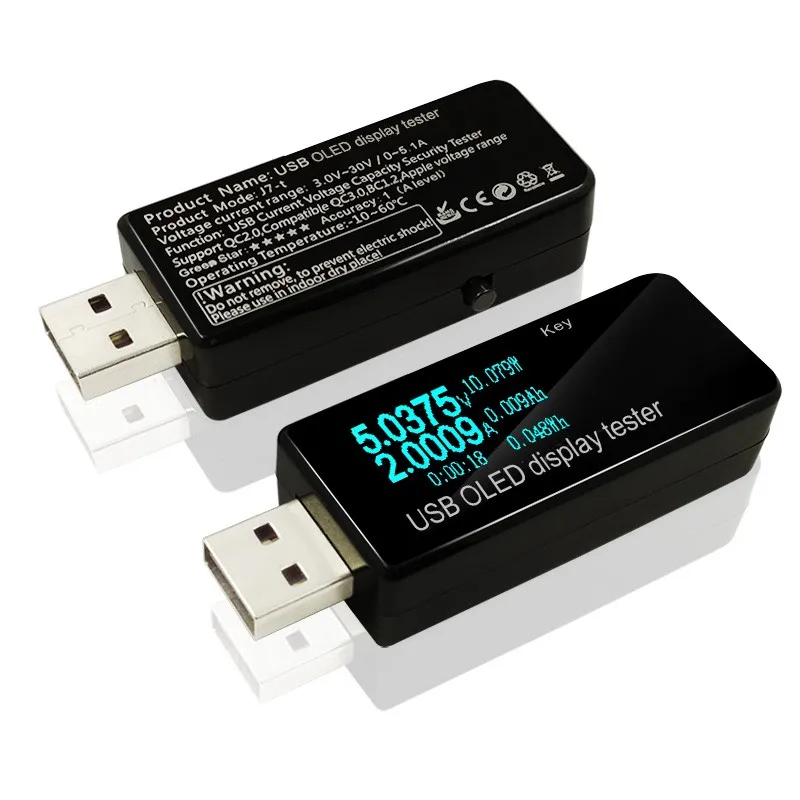

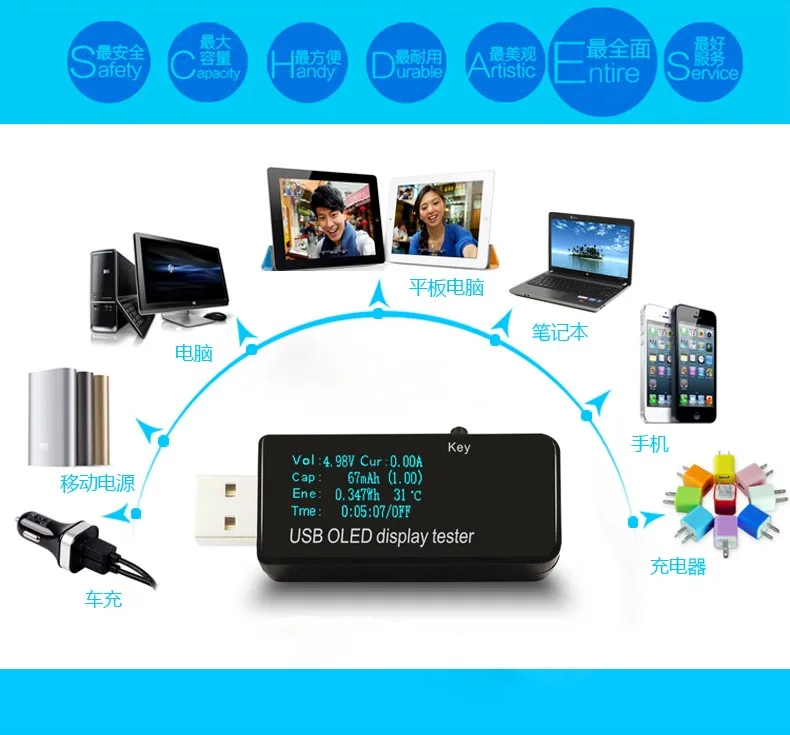

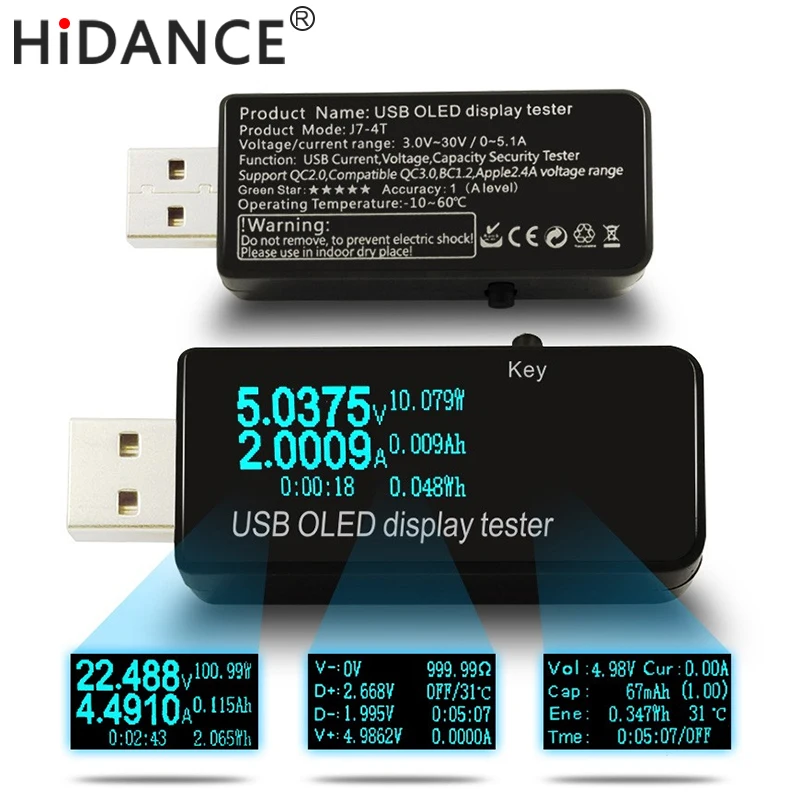

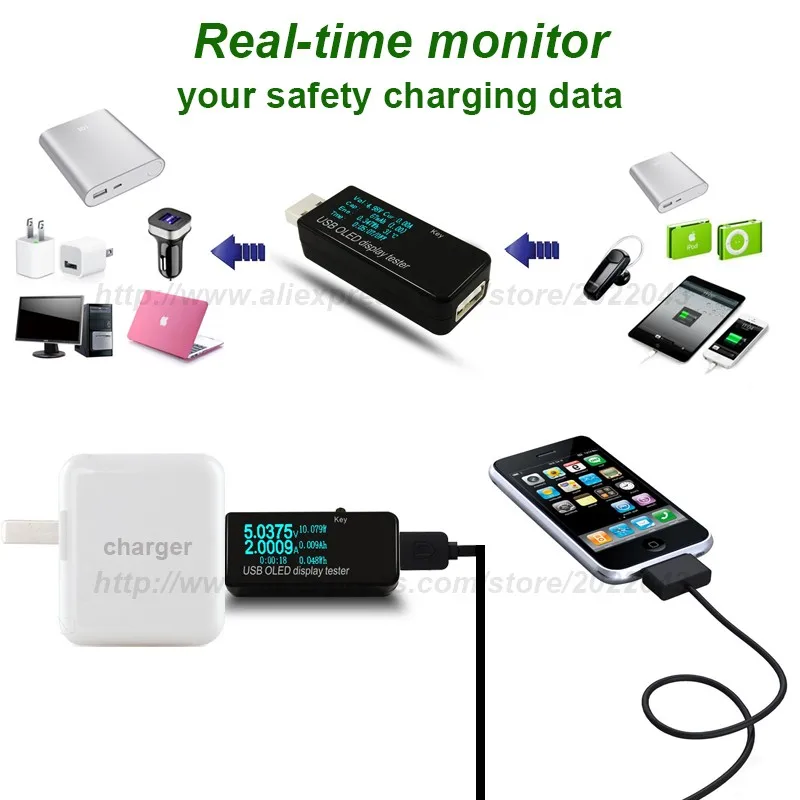

8. Suiable for testing PC USB, cell phone charger, car charger , mobile power , etc. Specification: 1. Model: J7-4T/J7-T
2. Material: Plastic
3. Color: Black
4. Voltage: 3.0000-30.000V
5. Current: 0-5.1000A
6. Operating temperature: -10 - 60°C
7. Size: 65 x 24 x 14mm Description:

• This test can be a USB charging current, voltage, discharge capacity,Quantity of electric charge,power, timing, intelligent devices.
• It can be very easy to find digital device charging problem.
• Tester three dimensional size 65 * 24 * 14mm• The only button on the tester is used to view and test data switch, The tester can be powered down to save dat

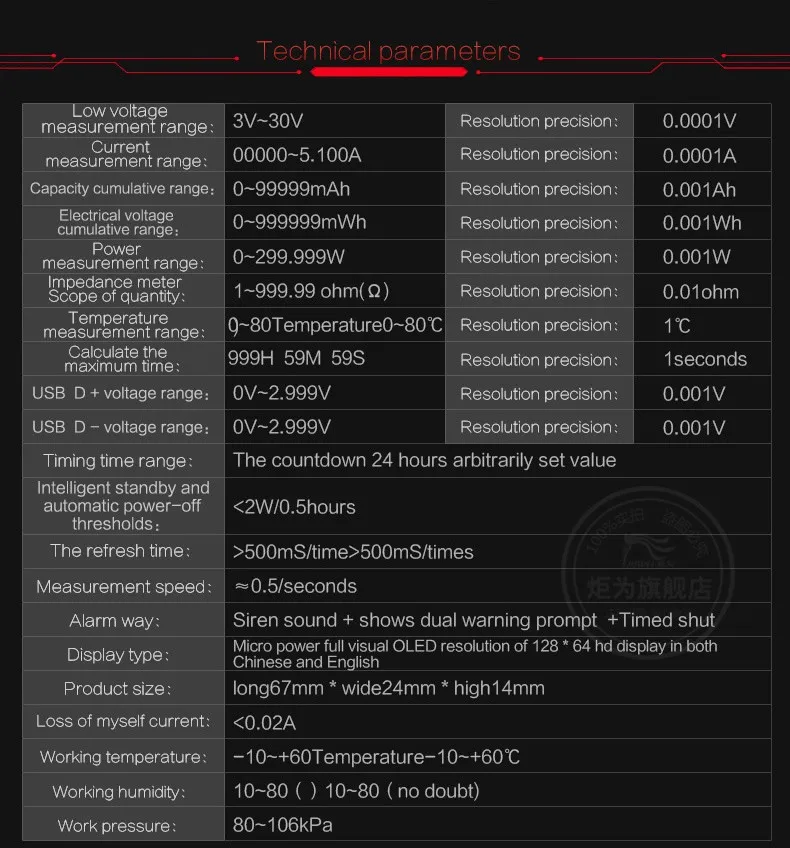

Specifications:
1. Input Voltage: 3.0000V - 30.000V

2.Input current : 0 - 5.1000A

3.Cumulative capacity range: 0-99999 mah precision: 0.001 Ah

4.Charge accumulation scope: 0-999999 MWH precision: 0.001 Wh

5.Cumulative power range: 0-299.999W precision: 0.001W

6.Timing the maximum range: 0-999 hours 59 minute 59 seconds precision: 1 second
7.Parameters that you can test: Voltage of battery. Current of battery, discharge capacity of battery,Quantity of electric charge,power of battery,timing.
8.Communication function: Yes
9. Parameters adjusting function :Yes. Equipment for parameters adjustment: One electronic load,one constant current source. Voltage of constant current source should be set to 8.5V
There are 3A, 2A, 1A and 0.3A models for current adjusting.
Here is a example for 3A:
When you set electronic load at 3A model, the current will be adjusted step by step.
It will cost you about 10 seconds and you can see the result changing procedure in the OLED screen.
When you see the 3A result shown in OLED screen, the adjustment process is finished. You can shut
off the electronic load and the parameters will be saved automatically.
10. Clean the data : Push the button until the parameters changed to next sets of parameters. Then release the button.
Then the next sets of parameters will be started and they will start from zero.

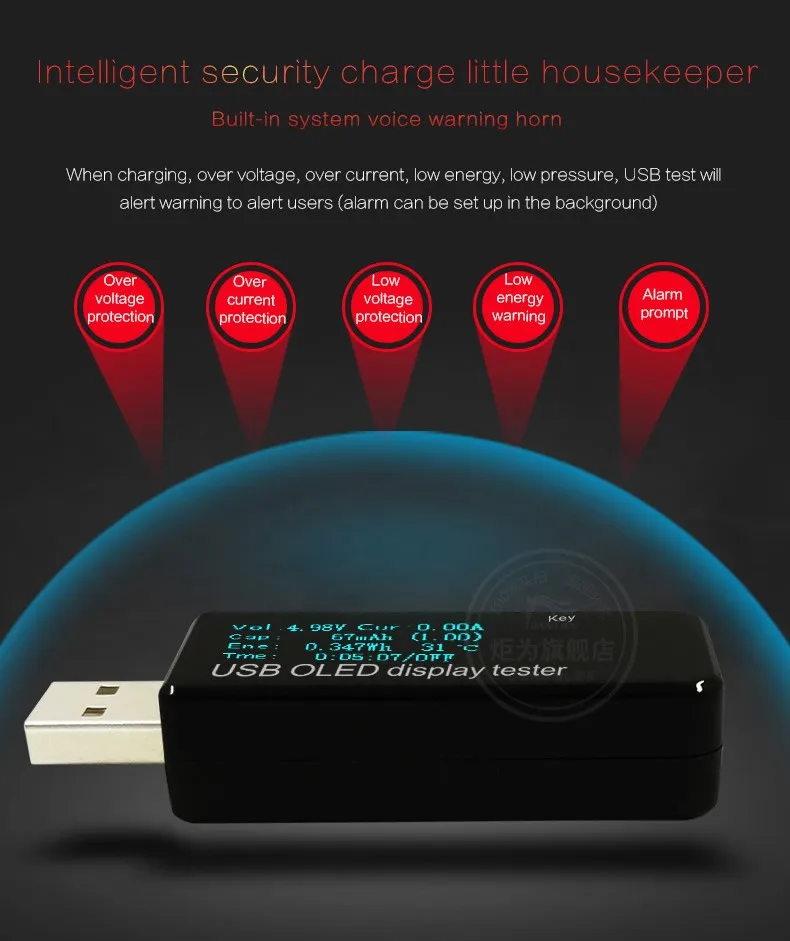

11. Over voltage or under voltage : Over voltage or under voltage,OLED screen displays a warning symbol and issue rapid beep beep sound.
12. Turn on mode l: The oled screen will show all parameters within 1s when you connect power supply by Micro USB or male plug of USB with wire.(It is to check whether the OLED screen is good or not).Then you can see the parameters used last time(capacitor and which set of parameters). You also can see the current voltage, current and over voltage or under voltage. Please see following illustration.
USB output port can be connected to a data line, a discharge resistor or the like cable device comprising a data communication function, the data does not affect the data transmission line.
Test specifications, voltage can not exceed 30V, current can not exceed 5.1A.

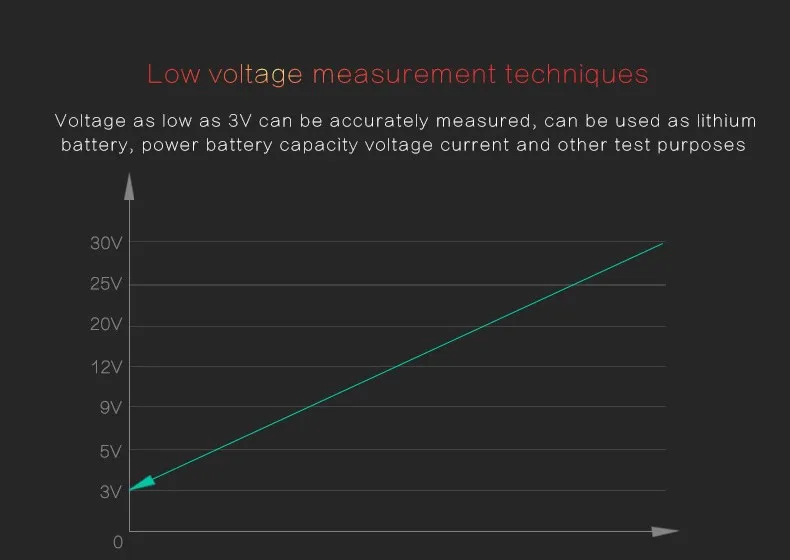

Note:When the voltage is lower than 3V on the instrument display No display screen or higher than 22V,oled screen displays a warning symbol and issue rapid beep beep sound, it does not affect the use.

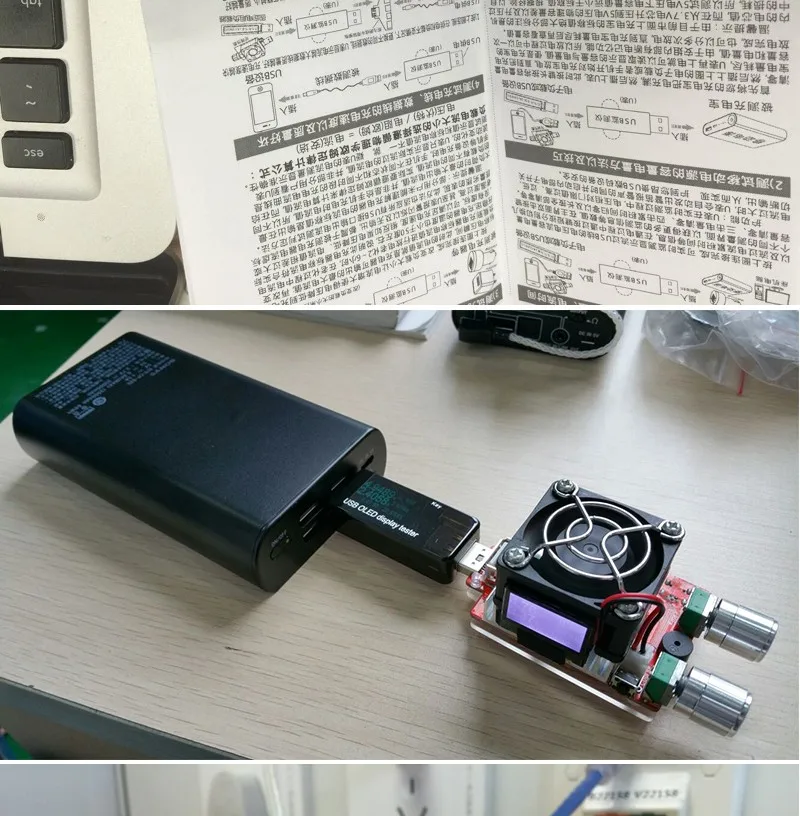

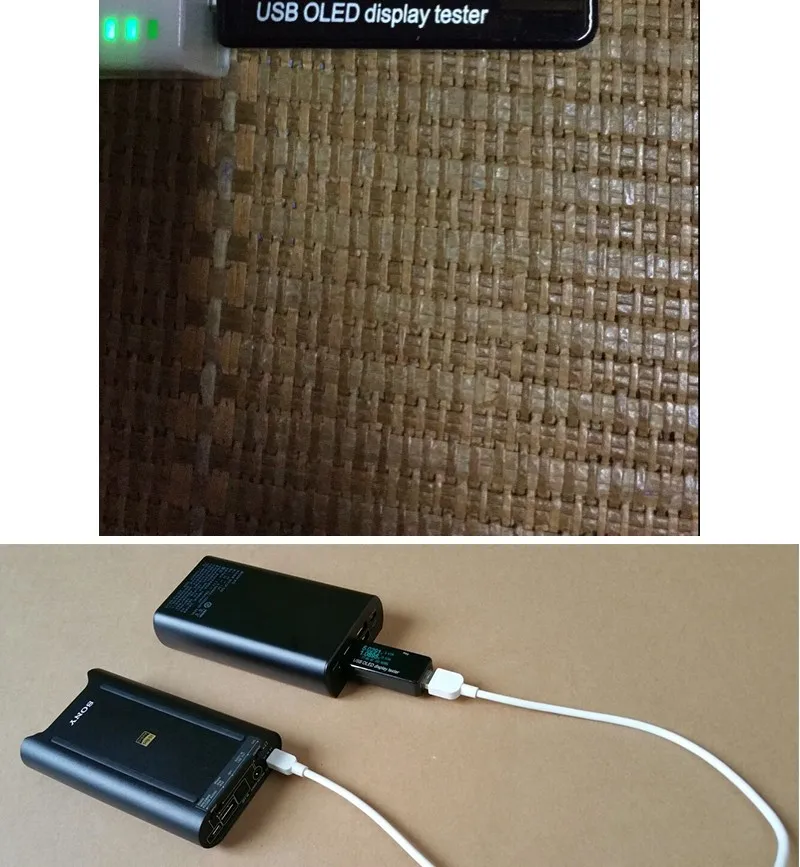

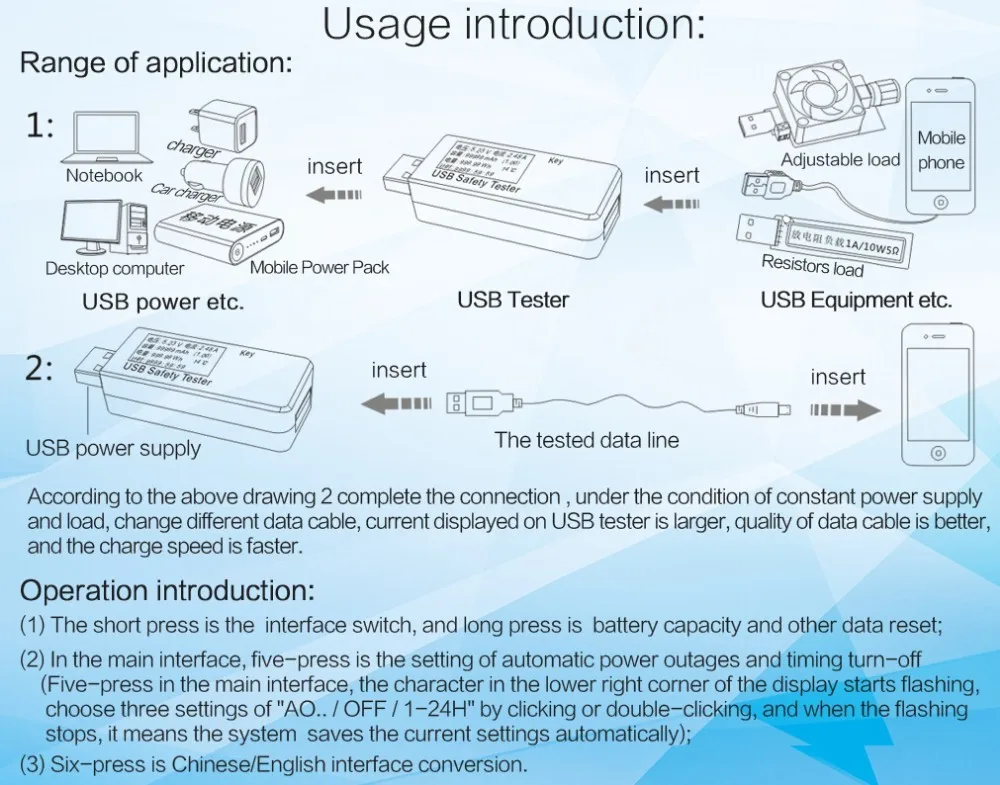

Application examples
Because mobile phones and digital devices at low battery or full charge, the current and voltage is not a stable value,
the application example of the discharge
device is a USB 1A or 2A discharge resistor.

Note: This data is mobile power discharge capacity, the battery capacity is not, according to our experience, the discharge capacity is about 1.9 times the battery capacity.
The former Test Reference Manual Tester discharge capacity value is cleared,and the mobile power is fully charged.

Package include

1 x OLED USB Voltage Current Detector Mobile Power USB Charger Tester Meter

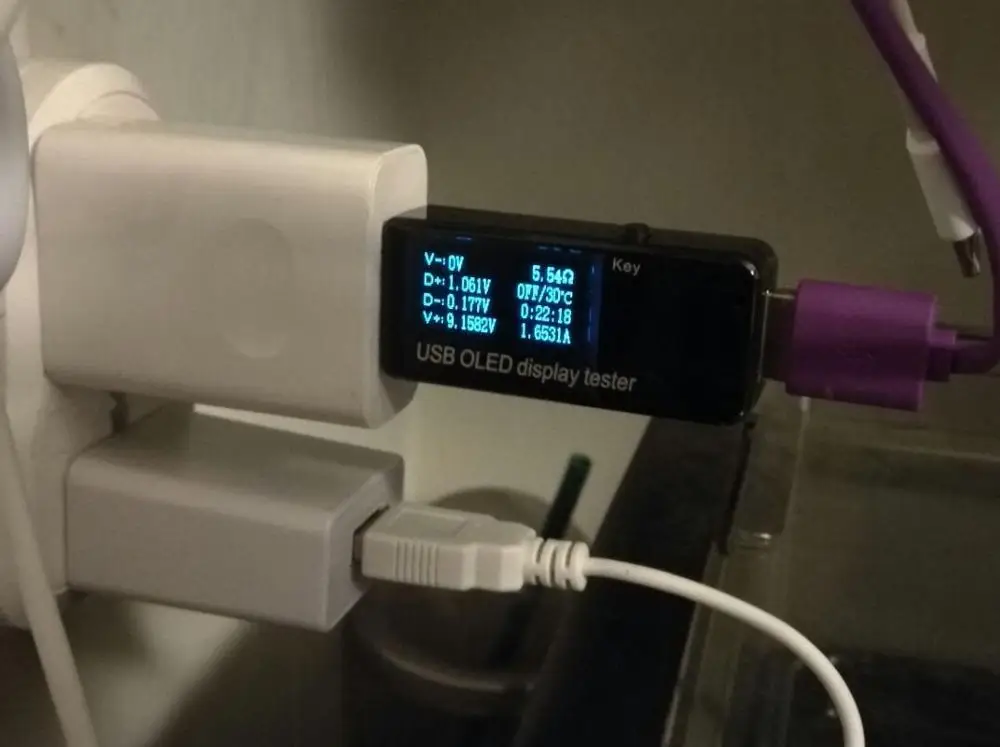

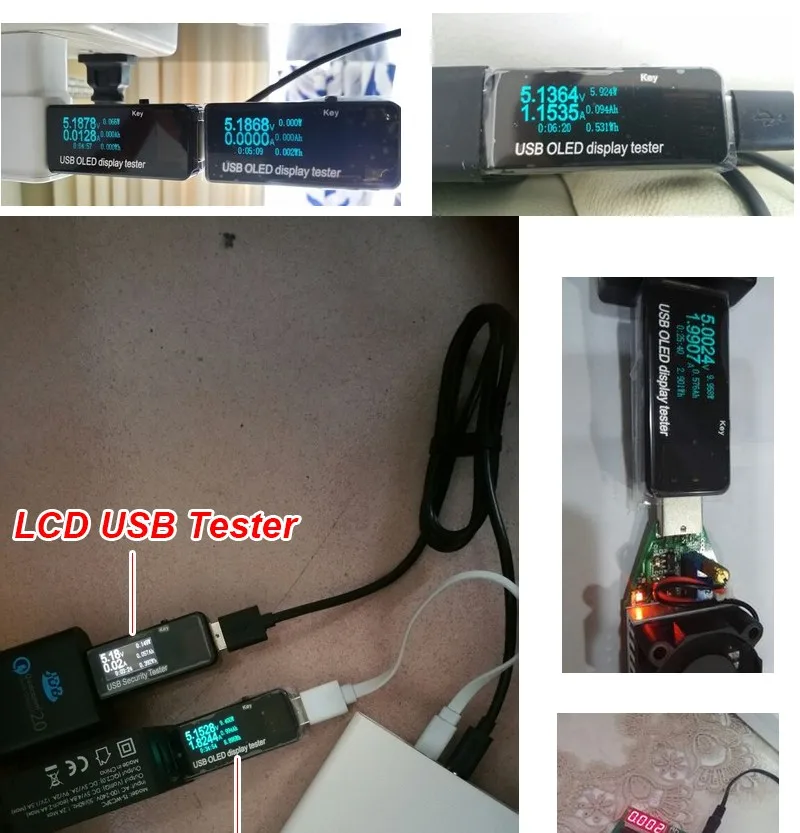

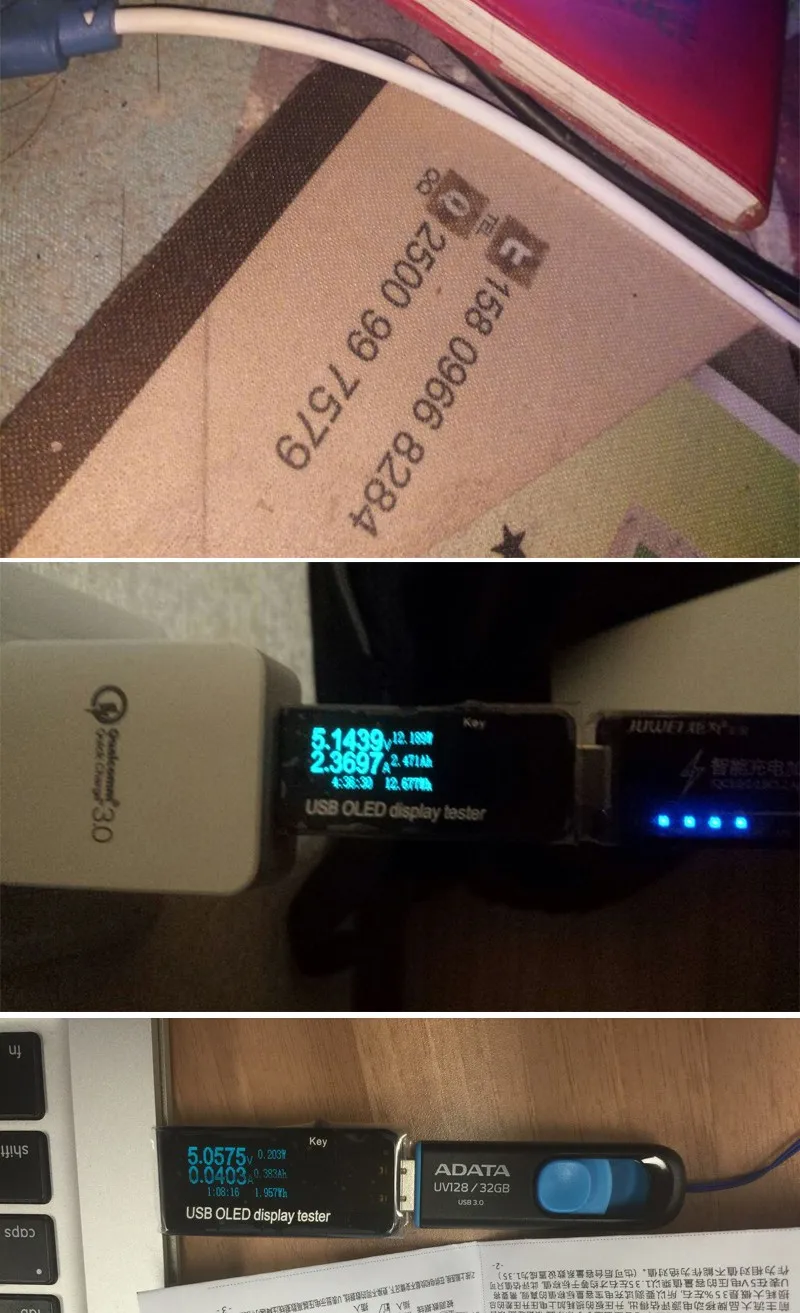

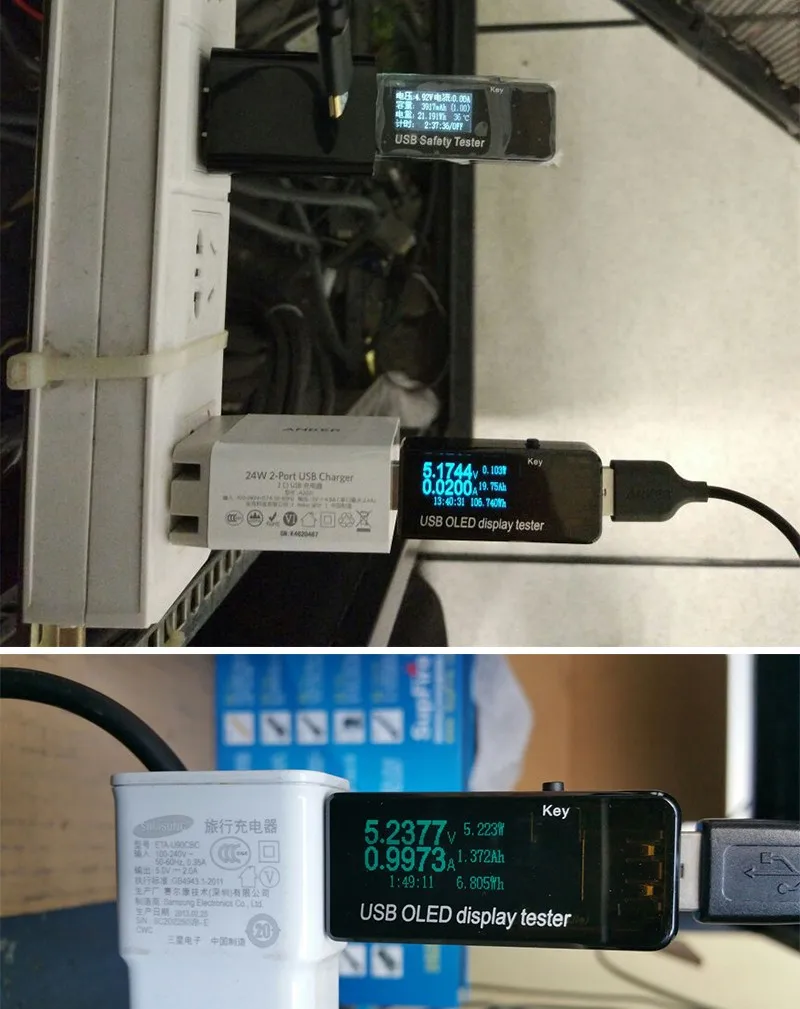

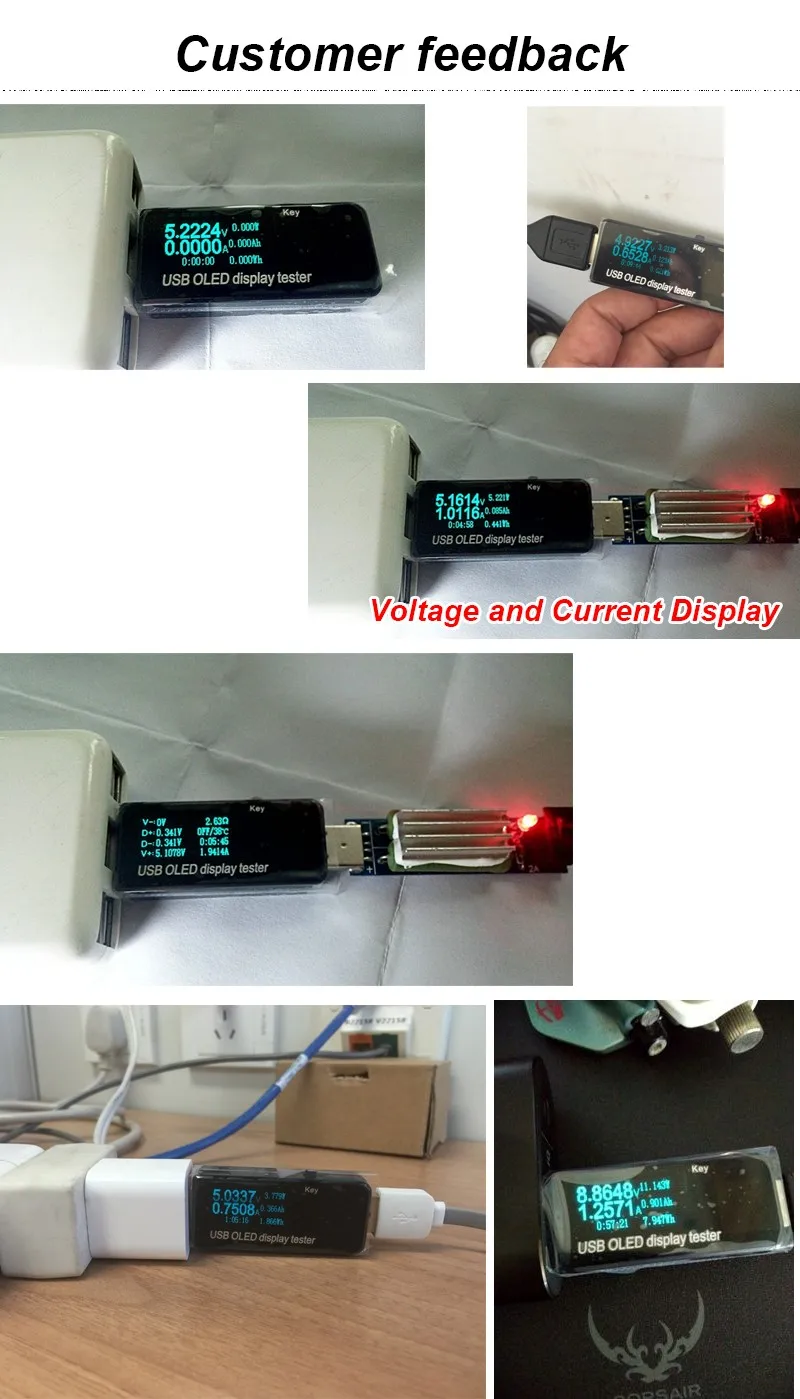

Successful cases:

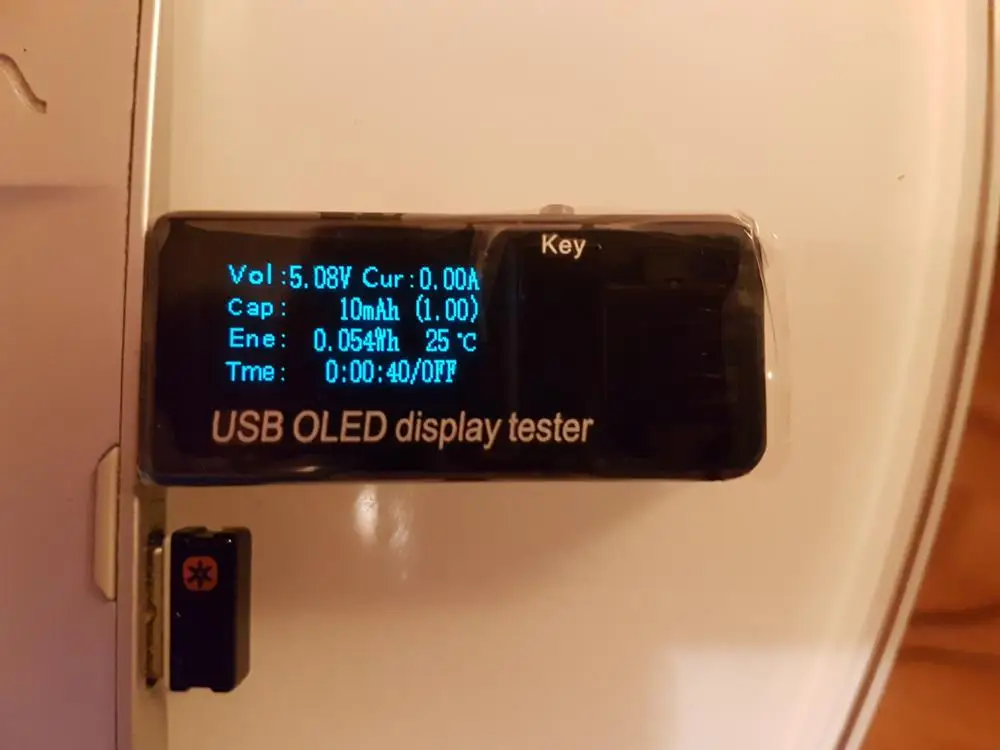

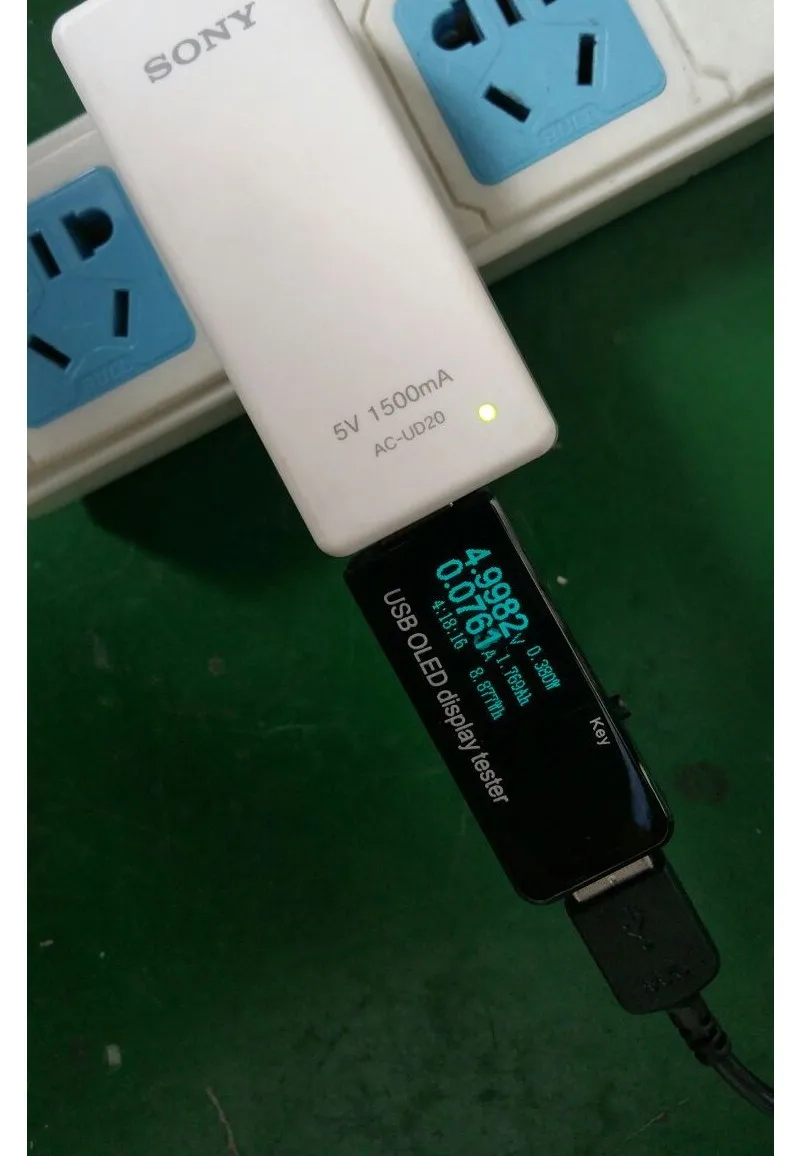

Successful cases:

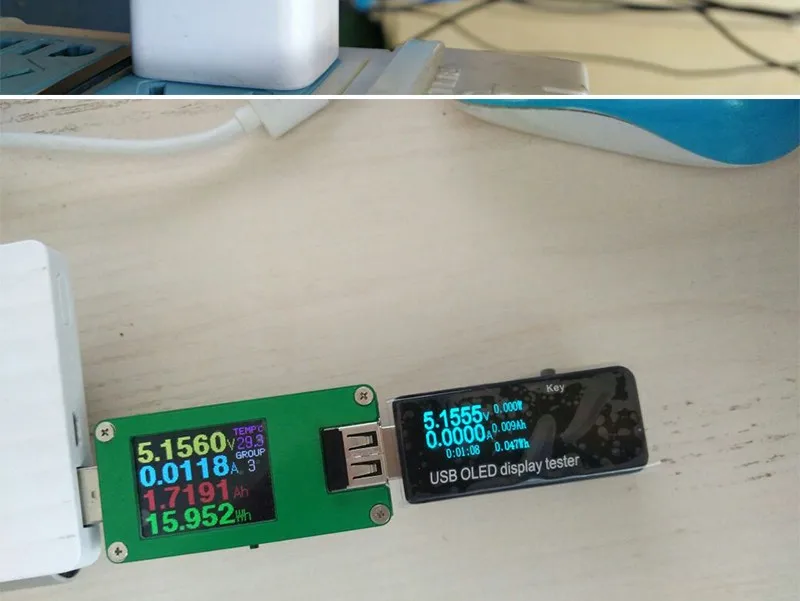

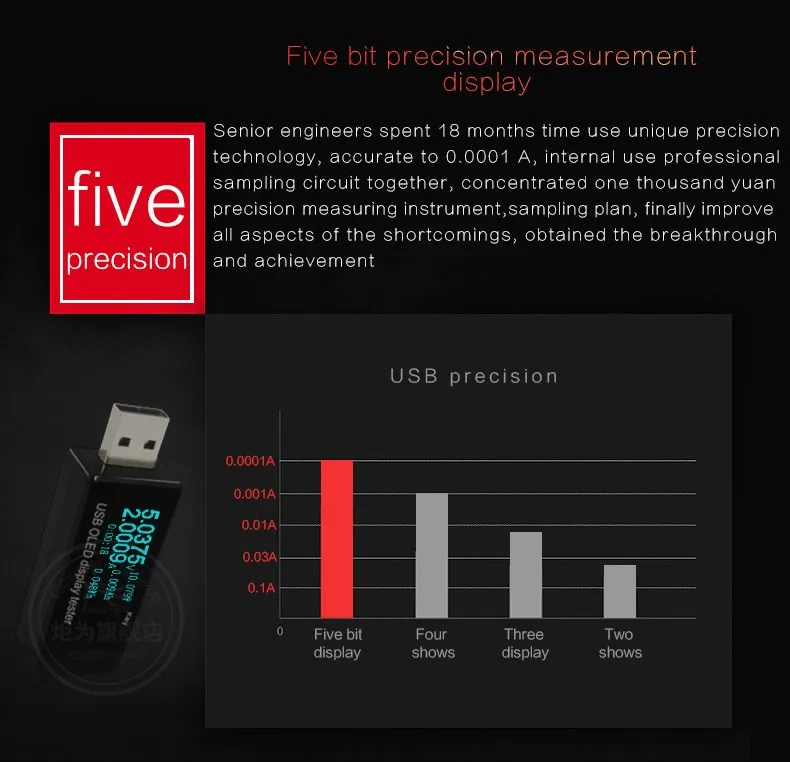

Precision evaluation:
