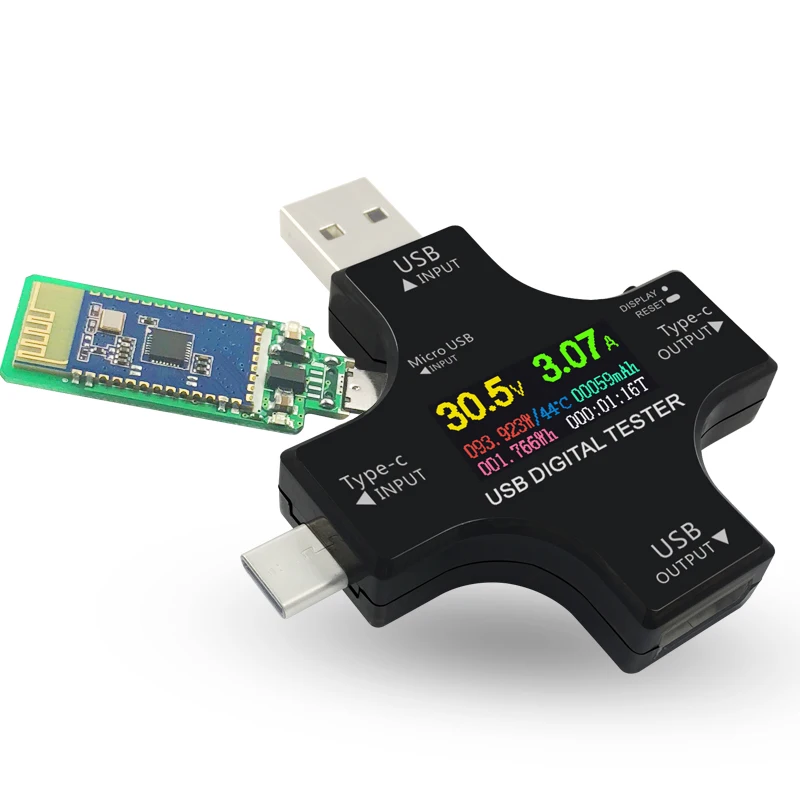

Power Bank Charger Sale Collections provide backup power,outdoor battery,power bank,power charger Terrific New USB tester Bluetooth Type-C PD Digital Color TFT voltmeter voltage current meter ammeter detector power bank charger indicator. Get Discount Now! Only US $9.97/piece at this time. Hurry buy Now before back to normal price! Normal price US $12.46 or you can Check price now. Dont waste your time. Buy Now only in ATORCH Innovative Manufactory Co., Store Trusted Seller Store!
18W quick charge, support iphone quick charge technology, supports apple 8/ apple X/apple 8 Plus, charging power of 18W!
This USB tester not only compatible with Type-C pd quick charging protocol power 45W and iphone 87W smart charger PD power supply such as mobile power, but also compatible with Qualcomm QC2.0 (5V / 9V / 12V / 20V) Qualcomm QC3.0 (3.8 ~ 12V +/- 0.2 step), Android BC1.2 (5V), Apple iPhone5V / 2.4A and MTK-PE (5V / 7V / 9V / 12V) Qualcomm quick charge protocol voltage Range of charge-through measurement. And USB internal data line before and after the through mode, it can also be compatible with U disk readings and computer USB interface data transfer voltage and current measurement applications, the use of a more extensive range of USB interface can be used.
The engineer once again has several technical upgrades:
1) USB-C male head replacement cost of copper pin contact plug better, tighter current data more reliable.
2) increase the screen 180 degrees flip display settings function, to adapt to some chargers using inverted display as a positive display (click to AAA interface, and then double-click the key to make it 180 degrees reverse display).
3) the optimized PD protocol is suitable for Apples 87W charger, and both the positive and negative side can transmit the ACC pin of the PD protocol.
4) the OTG protocol of Type-C can open the OTG digital function by inserting a random embedded Android switch head in the upper left corner of Android line.
5) increase the interface settings such as overvoltage, low voltage, overcurrent, backlight time, etc., and switch to the corresponding interface at the short button at the front desk, set up by adding double or three strokes.
6) challenge limit by metal industry upgrade patch manganin sampling device reduces the resistance to <1mR, access after use almost does not affect the charging speed, the perfect support for HUAWEI 4.5A super fast charging current, like a data line, the more coarse the more shorter the better, faster charging
7) increase the zero position calibration function of the product front desk, and measure the ultra small current more accurately. When no load is pressed, the key is quickly pressed 7 times. It is the zero temperature accurate calibration of the current temperature environment. At that moment, the accuracy of measurement is improved again. This is another innovative design that we have learned from U table technology experience for many years.
8) the built-in PD protocol can open the Type-C interface with the PD protocols intelligent charger unloaded power output display, so as to facilitate aging and testing. (this function can be successfully opened by inserting the random Android OTG adapter head in the upper left corner of the cross U table with the Micro USB line input port).
9) the PD protocol quick charging mode measurement that supports the updated apple X mobile phone. (support iphone 8 / 8P / apple X / MacBook quick charging, 29W power, 5V3A / 9V3A / 12V2.5A / 15V2A)
10) optimize the number of transmission functions, such as power failure memory, USB data transmission, PD fast charge protocol and so on
Note:
1. this is tester have no communication version, have conmmunication version by Bluetooth connection.
2. PC software support PC window (Win 7 and above) and Phone Android (Android 5.0 and above, support 12 kinds language, chinese, english and Russia .... )
3, User manual, PC software installation instruction and PC software and Android APP download link: http://www.mediafire.com/folder/0jt6xx2cyn7jt/UM24
4, For Android APP :
A: APP only support android 5.0 and above .
B: Allow APP to do in the background, not be cleaned.
C: allow APP self-starting.
D: Allow APP stay after screen locked, not be cleaned.
Combo Meal(2)Non-Bluetooth USB & Type-c 2 in 1 Color Tester Packing List:1.USB & Type-c 2 in 1 Color Tester X 1pcsApplication of landscape：
--- Product display interface and function settings---
-- Accuracy evaluation --
User Application cases:
--- Type-C Test Mode ---
--- Micro USB Cable Test Mode ---
--Patent Certificate--
2017 Newest design Multifunction USB + Type-C Port Tester Arrive!
This instrument can monitor voltage, current, capacity, electric quanity, power, load impedance, D+/D- voltage, charging time and other data of USB, and supports Qualcomm QC3.0 compatible QC2.0, Bc1.2, and Apple 2.4A and other protocol quick charging voltage ranges, support OTG fucntion. When the power is > 0.5W, the time will be calculated!Specification:
Voltage measuring range : 3.6V~32.0V Resolution Precision : 0.01VCurrent measuring range : 0.00~5.10A Resolution Precision : 0.01ACapacity cumulative range: : 0~99999mAh Resolution Precision : 0.001AhPower cumulative range : 0~999999mWh Resolution Precision : 0.001WhPower metering range : 000.00~150.00 W Resolution Precision : 0.01WImpedance Measuring range : 1~999.9Ω Resolution Precision : 0.1ΩTemperature Measuring Range : 0~80℃ Resolution Precision : 1℃
Maximum Timing : 999Hours 59Minutes 59 Seconds Resolution Precision : 1sTimer Charging Reminder : Countdown 24 hours, set value arbitrary USB D+ Voltage Range : 0V~2.999V Resolution Precision : 0.001VUSB D- Voltage Range : 0V~2.999V Resolution Precision : 0.001VFull Charger Reminder Parameters of Mobile : <2W/0.5HoursTime to refresh : 500mS/ timesMeasurement rate : 0.5 times/sAlarm Mode : Siren Sound+ Display HintsProduct size : 61mm x 68mm x 10.8mmSelf-consumable flow : <0.02AWorking temperature : -10~+60℃Working humidity: : 10~80(no doubt)Pressure of work : 80~106kPa
Certificate: RoHS, CE
Warm Prompt:
Actual Tester delivery for You will be English Version, Pannel and LCD Display is in English as follow picture:
The PC Control Software Installation Instruction
Note: This product only supports Windows 7 and above.
1 Unzip the installation package

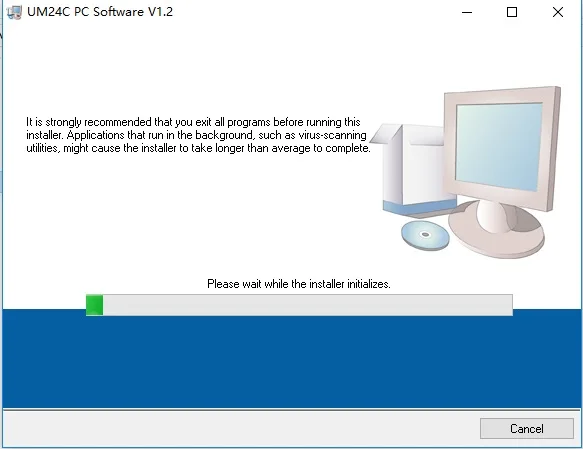

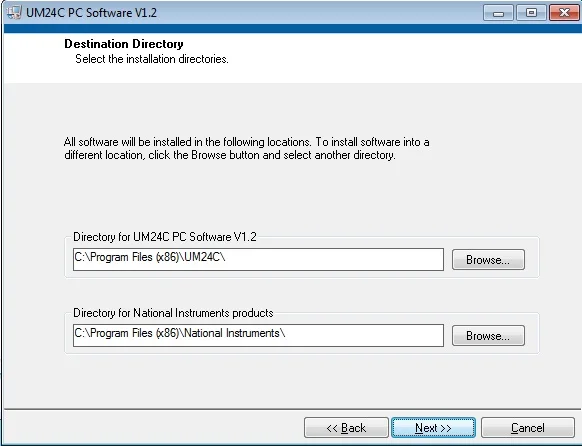

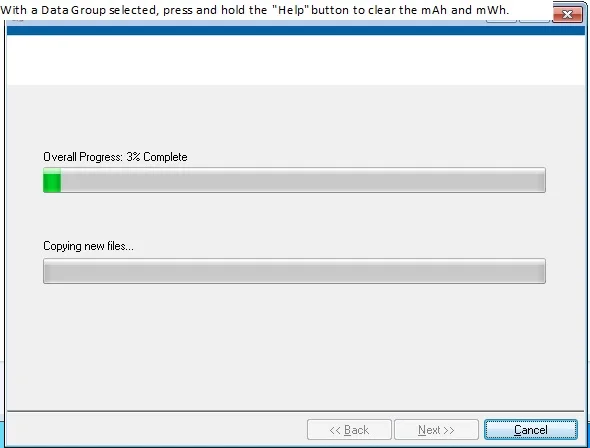

2 Click setup to install
3 Bluetooth connection
3.1 View device Manager

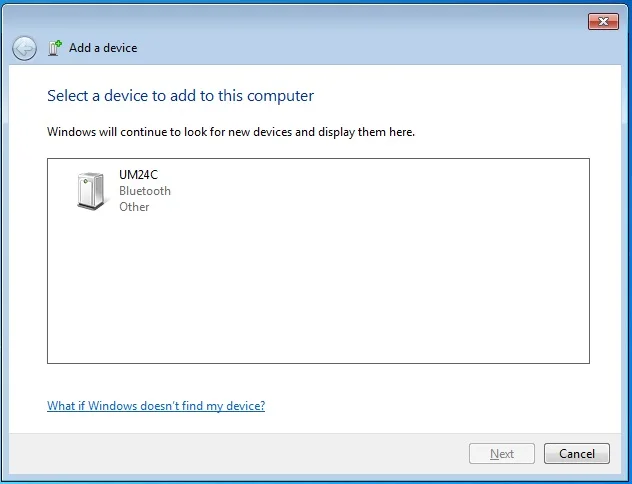

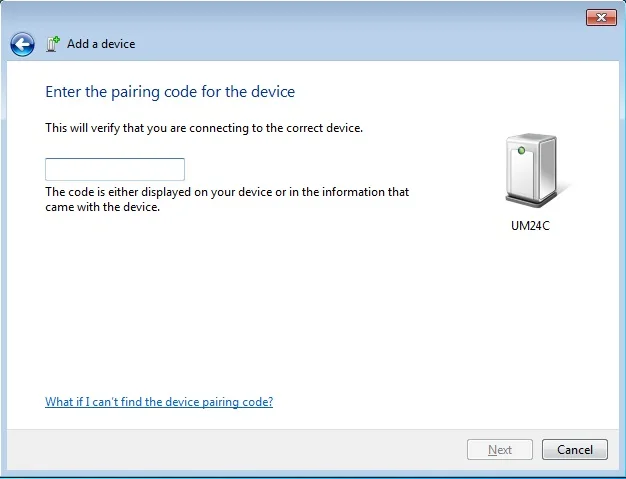

3.2 Connect bluetooth:
3.2.1 Bluetooth connection is successful; there will be two serial ports. Select the lower value port. Example, if the ports configured for Bluetooth are COM3 and COM4, then select COM3 for the connection. Or you right click bluetooth device to see the the attribute, there show the corresponding port number. You can select it.
3.2.2 When the Bluetooth indicator changes from blinking to static, click “Connect”
4. Function Introduction

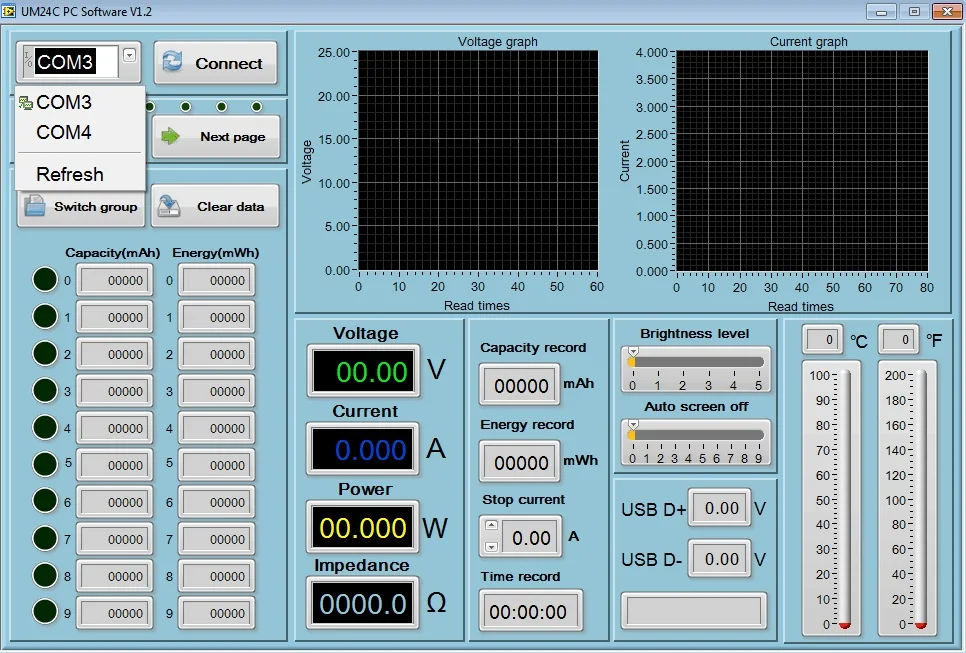

4.1 Program interface overview:
1: Basic functions: Rotate screen, Next pages
2: Corresponding data group: data group switch, data group data clear
3: Corresponding the main display interface 1: main measurement interface
4: Corresponding the main display interface 3: Data recording interface
5: Corresponding the main display interface 2: Quick Charge Recognition interface
6: Corresponding the main display interface 7: Settings interface, dual format temperature display
7: Corresponding the main display interface 7: Settings interface, screen brightness, auto screen off time.
8: Corresponding the main display interface 6: Current Graphing Interface.
9: Corresponding the main display interface 5: Voltage Graphing Interface.
4.2 Graphing and Data Export:

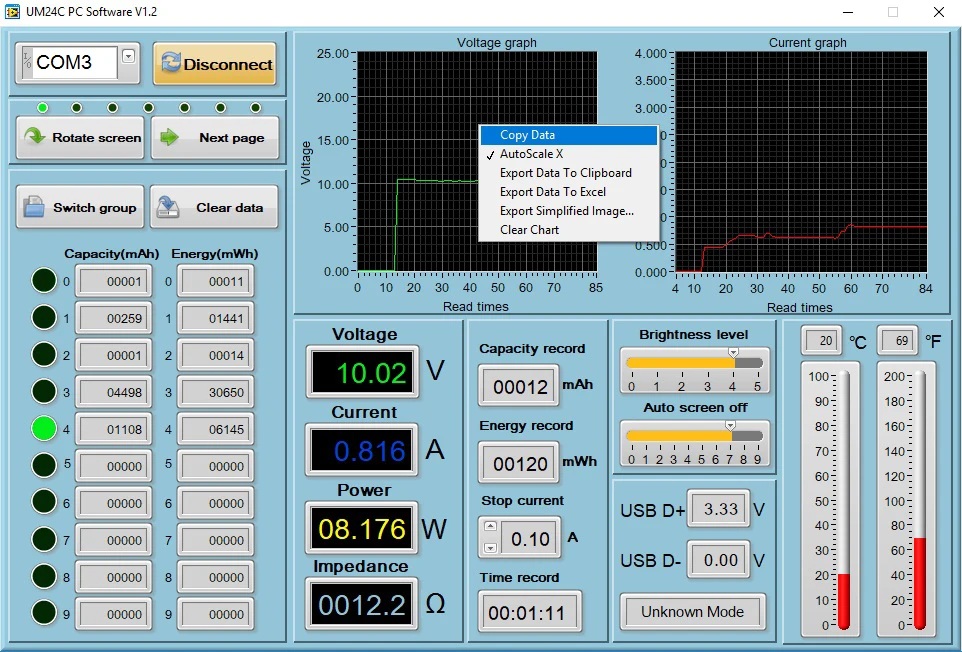

Move mouse over the Voltage / Time measurement graph then right-click and select the following options:
4.2.1: Copy data to the clipboard:

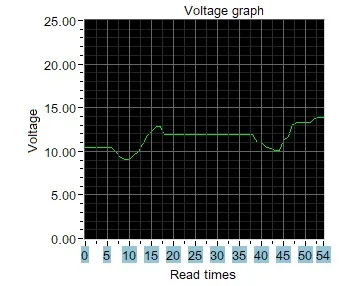

4.2.2: Automatically adjust the X axis:
4.2.3: Export data to the clipboard:
Format : Reference point number on X Axis, Voltage value at that reference point.
Read times - 电压曲线 Voltage - 电压曲线
0 12.03
1 12.02
2 12.03
3 12.03
4 11.97
5 12.00
6 12.00
7 12.08
8 12.10
9 12.13
…
4.2.4: Export data to Excel:
The X scale is adjustable to your preference. You can export up to all the data reference points, or, only export the current recording data set. Please note, the exported data is only for Microsoft Office Excel.

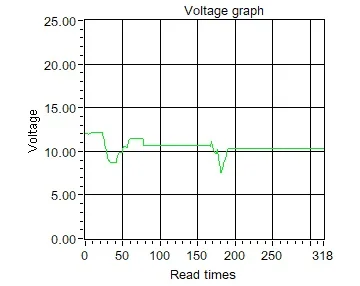

4.2.5: Export simplified images:

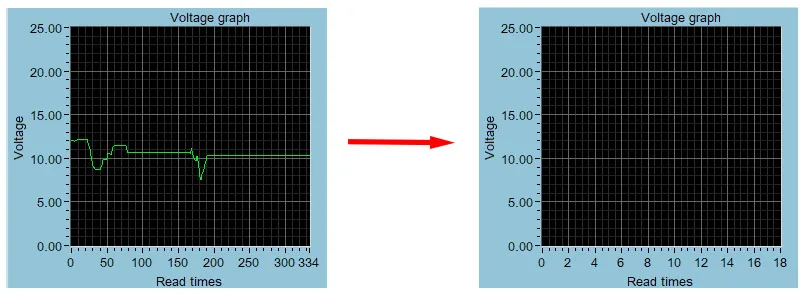

4.2.6: Clear chart:
