FBS-2000 Portable Mobile Power Tester Export Capacity Detector Discharge Capacity Testing Automatic Detection Integrated
Function description:

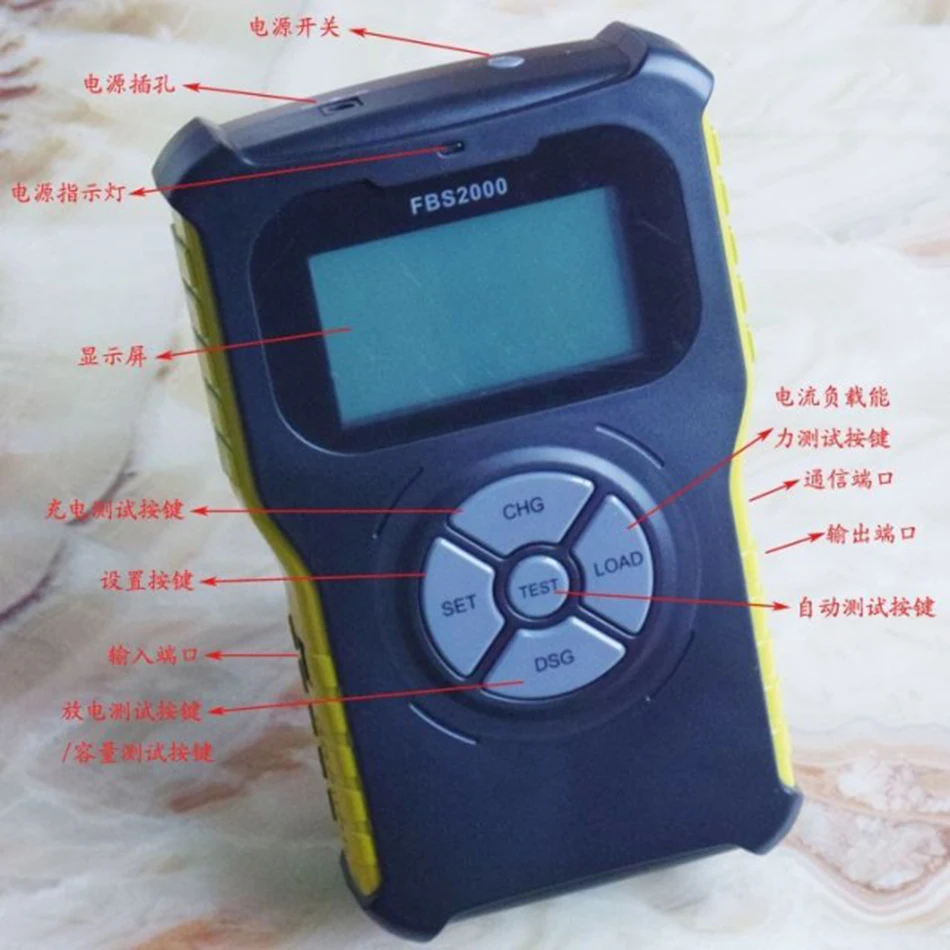

First, the key introduction
TEST button: automatic test button
CHG button: Charging test button
DSG key: discharge test, short circuit test, charge and discharge test button
SET button: Set the button, you can set 0.5A, 1A, 1.5A, 2A fourth gear discharge and calculate the capacity, short circuit test, charge and discharge test and other functions, according to DSG test.
LOAD key: the maximum load current and current test button.
Second, the function description:
1. Charging test: support for external mobile power charging, and charging time, current, voltage real-time monitoring. Maximum current 2A when using external power (plugged into adapter), maximum charge current 1.2A when using internal battery
2. Discharge capacity test: Support for real-time detection of mobile power discharge current, voltage and time, and the discharge capacity measurement, until the mobile power discharge is completed, the actual discharge capacity of mobile power can be drawn.
3. Short-circuit test: detection of mobile power short-circuit protection and short-circuit recovery type.
4. Load current test: Support for mobile power discharge, discharge current from 800MA began to increase to 2.8A, until the mobile power over-current protection, you can test out the maximum load current mobile power.
6. Charge and discharge test: Simultaneously charges and discharges the mobile power supply, and detects the charging voltage, charging current, discharging voltage and discharging current, and tests whether the mobile power supply supports the functions of charging and discharging simultaneously.
7.Automatic test: a key to the mobile power charging test, no-load voltage detection, data line voltage detection, and 0.5A, 1A, 1.5A, 2A discharge current corresponding to the four discharge voltage testing and other conventional tests.
8. Support for mobile power supply with key type button to output.
Second, the use of mobile power:
1, charging test
Press the CHG button, the test machine to charge the mobile power, the charging interface real-time display charging voltage, charging current, charging time and charging icon in the charging interface, press the CHG button again to return to the main interface.
2, capacity test
Press SET to select the discharge current (0.5A, 1A, 1.5A or 2A) and then press the DSG button. The tester discharges the mobile power. The capacity test interface displays the discharge voltage, discharge current, accumulated discharge capacity and discharge time in real time.
(1) After the mobile power is fully discharged (or no power is output), the accumulated discharge capacity and time are displayed and the DSG is prompted to exit. At this time, press the TEST key to perform the next test.
(2) During discharging and after discharge, press DSG to return to the main interface.
3, set the button
Press the SET button to set the discharge current in the capacity test and the discharge test conditions for automatic test
(1) current rating is divided into 0.5A, 1A, 1.5A, 2A, short circuit test, charge and discharge test six levels.
(2) In the capacity test, if the current level is set to 0.5A, the mobile power supply uses 0.5A discharge current until the discharge ends,
The same can be set to 1A, 1.5A, 2A.
4. Short circuit test:
When the SET button is set to short-circuit test, press the DSG button, the test machine to short-circuit the mobile power test, the main interface displays the short circuit protection time and short circuit recovery time, the test shows the recovery type of mobile power (automatic recovery , Charge recovery and button recovery), press DSG to return to the main interface, press TEST to continue the test
5 charge and discharge test:
When the SET button is set to short-circuit test, press the DSG button, the test machine side of the mobile power charging test. The main interface shows the charging voltage, charging current, discharge voltage, discharge current, the test is completed, the test shows the success or failure. Press DSG to return to the main interface, press TEST to continue the test
6, load capacity test
Press the load button, then enter the load capacity test interface.
1) The first line in the interface shows V0 is the no-load voltage, I0 is the no-load current.
2) The second line in the interface shows V is the real-time load voltage, I is the real-time discharge current.
3) The third line in the interface shows the time used for testing.
4) The load test current is increased by about 15MA every 3 seconds from the initial discharge current of 800MA until the mobile power is turned off
Output (over-current protection), the test results show the maximum load current and voltage normal mobile power discharge and test time.
(2) During the test and after the test, press TEST to continue the test, press the LOAD button to return to the main screen.
7. automatic testing
Press the TEST button, the test machine automatically test the mobile power.
1) Charging test: The testing machine charges the mobile power for testing. This step does not judge whether it is successful or not.
Electric current value.
(2) no-load voltage test: test machine to discharge the mobile power port voltage detection.
(3) I D test: The test machine detects the voltage of two data ports (D +, D-) of the mobile power discharge port.
(4) Discharge test: The test machine respectively carries out no-load on the mobile power supply, with 0.5A load, 1.0A load, 1.5A load, 2.0A load
test.
(5) After the test is completed, press the CHG button to scroll up, and the DSG button to scroll down to display the test results of each part. Press the TEST button to return to the main screen.
8. Operation instructions with button type
If the mobile power is required to press the mobile power supply comes with the type of button to output, when there is no output (not press the button), the test equipment detects the mobile power is not output, the screen prompts to turn on the output, then press Under the mobile power button, tips will disappear automatically and continue to test.
